SYNERSYS General Purpose Fume Hood
Designed to protect the user by providing an enclosed work area that withdraws the harmful chemical fumes. Within the fume hood enclosure, the hood’s directional air flow carries the harmful contaminants away from the user towards the rear of the hood, thus preventing the user from inhaling or coming into contact with the harmful contaminants.
The exhaust system (when properly designed) will dilute the contaminants with large amount of air or through a scrubber system before safely exhausting them to the atmosphere.
01DETAILS
|
External Wall |
- Cold rolled steel, chemically wash, clean and epoxy powder coated (oven
baked) finishes – chemical resistance.
|
|
Internal Liner & Baffles |
- Chemical and heat resistance phenolic resin liner material c/w side
maintenance gasketed access window panel.
|
|
Worktop |
- Chemical and heat resistance black epoxy resin material, dished to contain accidental chemical spillage. |
|
Sash |
- Safety laminated glass, counter balance design with sash slides on PVC
sash guide for smooth effortless operation using chain/sprocket mechanism
|
|
Lighting & Electrical Fixture |
- Hood interior illuminated by 2 fluorescent lights fitted above fume hood superstructure to provide a bright, non-glare working area.
- 2 x 13amp dual socket outlets. - Individual light and fan switch for lighting and exhaust fan on/off operation, mounted at the front side vertical facias of fume hood. - All wiring/ electrical components concealed within double wall construction |
|
Service Fixture |
- Standard PP oval drip cup come with water epoxy powder coated fixture
- 2 x Aerodynamic Fascia posts (left/right) - 1 x water remote front control valve - 1 x Gas remote front control valve |
|
Base Cabinet |
- Cold rolled steel, chemically wash, clean and epoxy powder coated (oven
baked) finishes comes with removable adjustable shelf (for general storage purposes as standard supply).
|
|
Special Fumehood type |
- Vertical/ Horizontal/ Combination Sash fume hood;
- Walk-in fume hood - Teaching fume hoods - Polypropylene fume hood - Fume hood with scrubber system |
|
Inner Liner |
- Phenolic Resin
- Stainless Steel 306 - Stainless Steel 316 - Polypropylene - Fire Rated Polypropylene |
|
Worktops |
- Epoxy Resin
- Phenolic Resin - Stainless Steel 306 - Stainless Steel 316 - Polypropylene - Fire Rated Polypropylene |
|
Base Cabinet |
Option of General storage, Acid cabinet or Solvent Cabinet combination |
|
Services |
- Compressed Air (Air Gun option)
- Nitrogen (N2) - Oxygen (O2) - Liquefied petroleum gas (LPG) (Manifold Option) - Distilled water (DIW) (Dispenser gun option) - Vacuum |
|
Accessories |
- Option of Ex-Proof lighting, switches, sockets etc.
- Option of low flow alarm monitoring system. - Option customized control system (i.e. Emergency Isolation Control System; Variable Air Volume (VAV) System c/w venturi valve; Emergency Fire Extinguishing System |
| Models | SYN1200 | SYN1500 | SYN1800 | SYN2400 |
|---|---|---|---|---|
|
Ext Dimension (mm) |
1200 (W) x 900 (D) x 2350 (H) |
1500 (W) x 900 (D) x 2350 (H) |
1800 (W) x 900 (D) x 2350 (H) |
2400 (W) x 900 (D) x 2350 (H) |
|
Volumetric Flow V = 0.5m/sec & Sash opening height 457mm |
1,245 CMH
|
1,625 CMH |
2,000 CMH
|
2,760 CMH |
|
Standard Compliance |
ASHRAE 110-95 |
|||
|
Sash |
6mm thick Safety laminated glass and counterweight balance |
|||
|
Inner Liner & Baffle |
6mm thick Chemical and heat resistance Phenolic resin liner |
|||
|
Power Outlets |
2 x 13 Amp (dual gang), 240 V |
|||

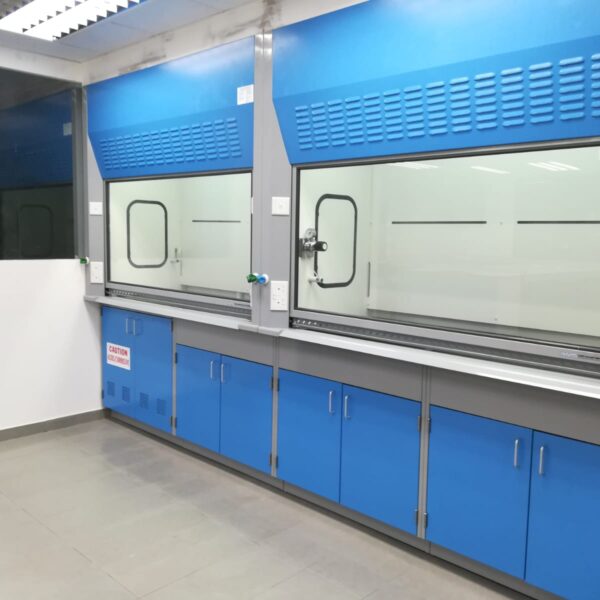

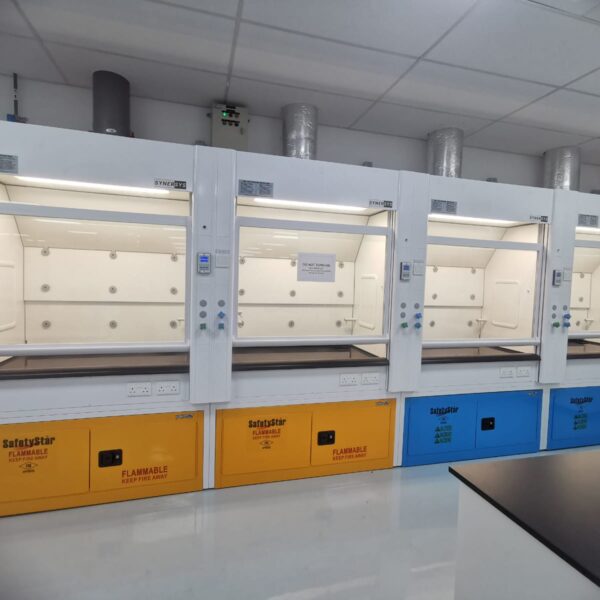

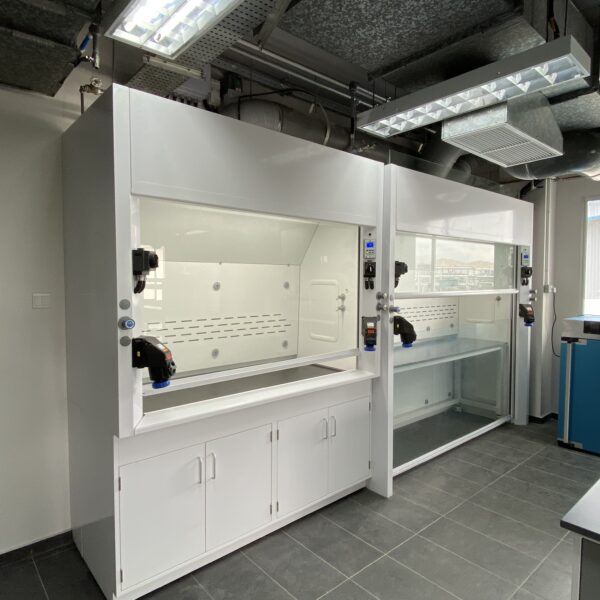

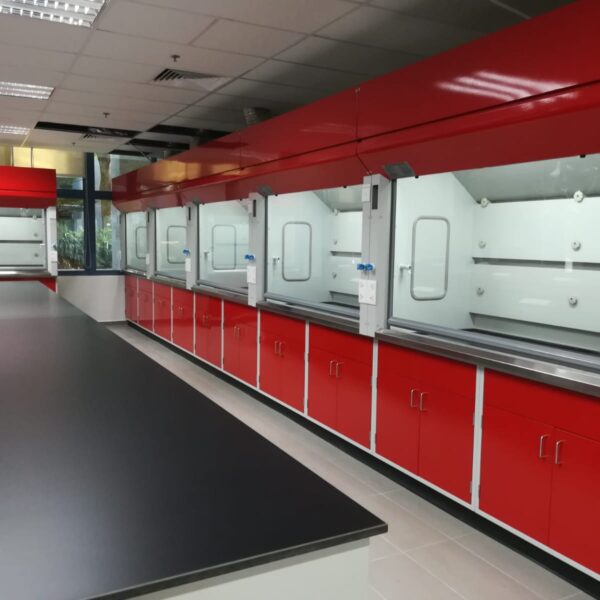

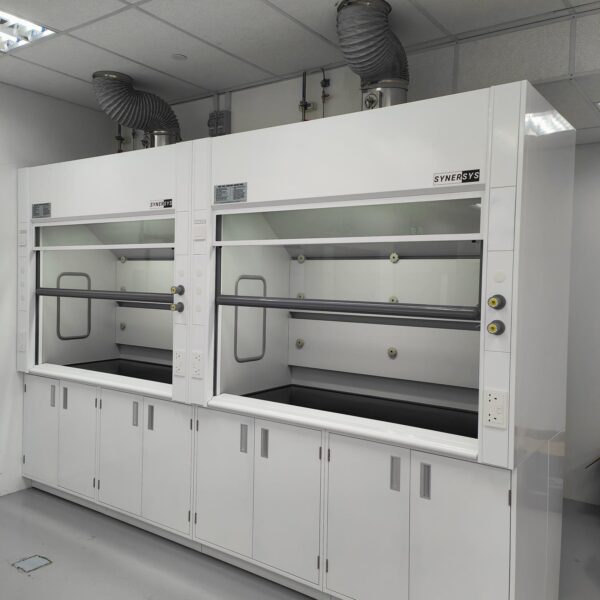

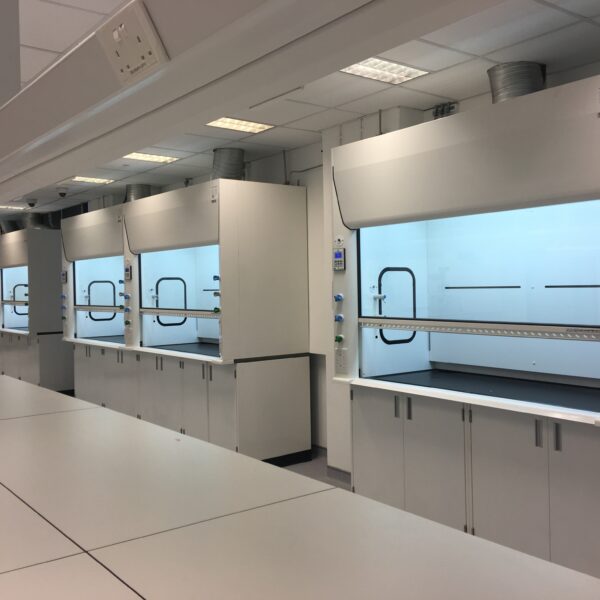

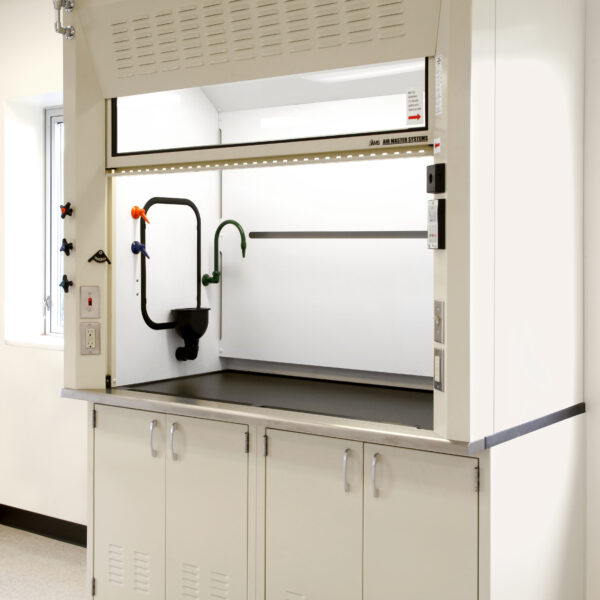

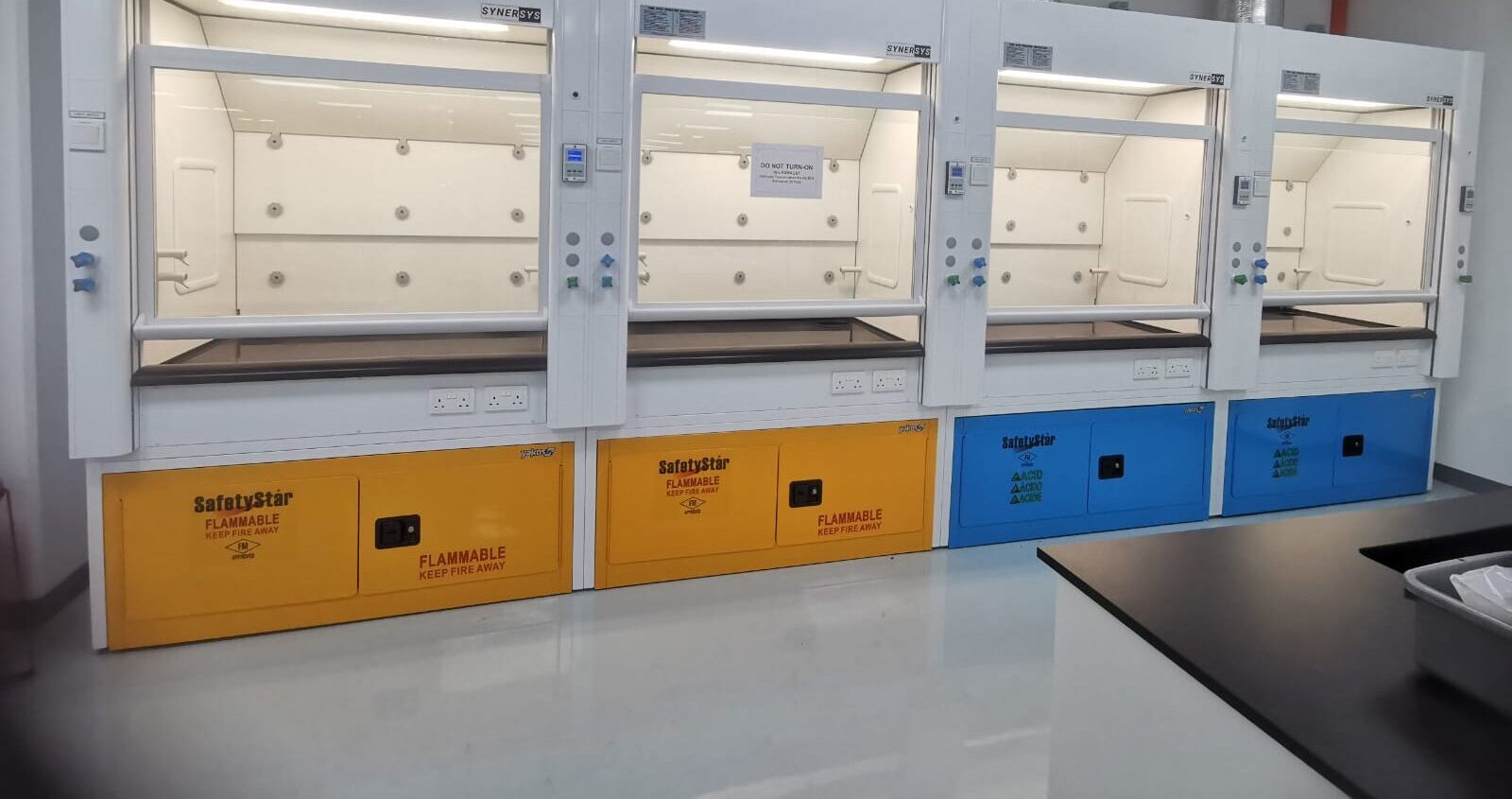

02GALLERY
